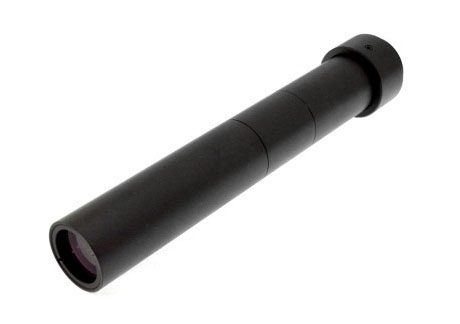

RT-TV-1M-150

RT-TV-1M-150

Specification Value
Magnification 1.000 (x)
Image circle diameter 8.0 (mm)
Max sensor size 1/2″
1/3″ 4.80 x 3.60 (mm x mm)
1/2.5″ 5.70 x 4.28 (mm x mm)
1/2″ 6.40 x 4.80 (mm x mm)
1/1.8″ – (mm x mm)
Working distance 156.0 (mm)
Working f/N 16.7
Distortion < 0.24 (%)
Depth of field 1.00 (mm)
Resolution 11.2 (μm)
Mount C
Phase adjustment Yes
Length 155.6 (mm)
Front diameter 24.0 (mm)
Mass 120 (g)
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Measured from the front end of the mechanics to the camera flange.

Additional information

Lens mount

C
Length

155.6 (mm)
Operation power source
Color
Accessory developer

Opto
Distortion

< 0.24 (%)
Front diameter

24.0 (mm)
Image circle diameter

8.0 (mm)
Resolution

11.2 (μm)
Mass

120 (g)
Phase adjustment

Yes
Depth of field

1.00 (mm)
Working f/N

16.7
Working distance

156.0 (mm)
Zoom ratio

1.000 (x)
Optmag

1.000 (x)
Sensor size
