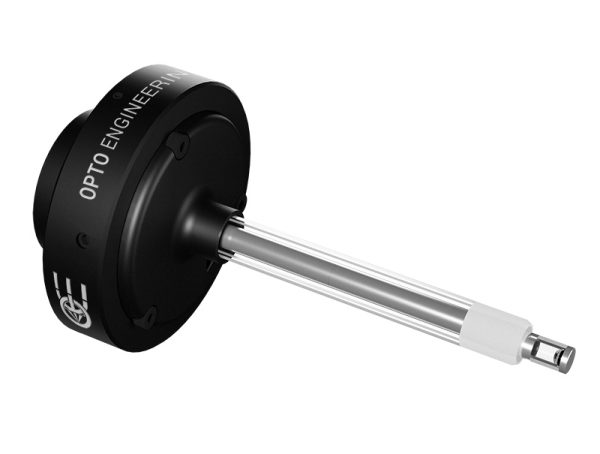

PCBPN013-WG

Specification	Value
Image circle diameter	3.4 (mm)
Min sensor size	1/3″
Minimum	8.0 x 4.4 (mm x mm)
Maximum	25.0 x 15.0 (mm x mm)
Angle of view	65 (deg)
Working f/N	30
Focusing	Manual
Light color	white (nm)
Supply voltage	24 (V)
Current	110 (mA)
Power consumption	2.6 (W)
Typical pulse voltage	16 (V)
Max pulse current	2400 (mA)
Peak power consumption	38.4 (W)
Max pulse duration	1 (ms)
Max duty-cycle	1 (%)
Liquid lens model	–
Temperature sensor	–
Focal power mode	–
Response time	– (ms)
Setting time	– (ms)
Current range	– (mA)
Lifecycles (10%-90% sinusoidal)	–
Connector	–
Mount	C
Phase adjustment	No
Total length	81.1 (mm)
Probe length	57.6 (mm)
Probe diameter	7 (mm)
Mass	85 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only
Risk group according to CEI EN 62471:2010	Risk group 1

Description

Lens mount	C
Power consumption	2.6 (W)
Risk group (cei 62471)	Risk group 1
Operating relative humidity	20-85, non condensing (%)
Max pulse current	2400 (mA)
Installation	Indoor use only
Storage temperature	0-50 (°C)
Operating temperature	0-40 (°C)
Current	110 (mA)
Supply voltage	24 (V)
Image circle diameter	3.4 (mm)
Mass	85 (g)
Phase adjustment	No
Probe diameter	7 (mm)
Accessory developer	Opto
Operation power source
Connector	–
Working f/N	30
Focusing	Manual
Typical pulse voltage	16 (V)
Probe length	57.6 (mm)
Total length	81.1 (mm)
Light color	white (nm)
Angle of view	65 (deg)
Maximum	25.0 x 15.0 (mm x mm)
Minimum	8.0 x 4.4 (mm x mm)
Peak power consumption	38.4 (W)
Min sensor size	1/3"
Lifecycle (1090% sin)	–
Focal power mode	–
Temperature sensor	–
Liquid lens model	–
Max pulse duration	1 (ms)
Max duty cycle	1 (%)
Color
