Description
- Support up to 1.1″ camera sensors
- High reslution for 20MP camera in full view,matching 2.4?m pixel size
- Ultra low distortion, TV distortion less than 0.1%
- Stable sharpness quality when temperature varies from -20?~50?
Dimensions

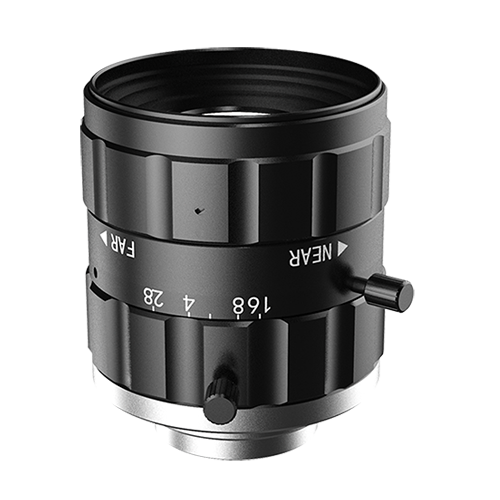

MT2528X
| Series | MT-X Series |
| Model | MT2528X |
| Focal Length | 25 mm |
| Aperture | F2.8 – 16 |
| Image Sensor Size | ?17.6 mm(1.1″) |
| Focus Range | 0.15 m to infinite |
| Optical Distortion | -0.37% |
| TV Distortion | -0.016% |
| Field of View | 38.8°x34.7°x23.5°(17.6 mmx14.08 mmx10.56 mm) |
| Relative Illumination | 82% (F2.8); 82% (F4.0) |
| CRA?Chief Ray Angle) | 10.7° |
| Spectral Range | 436 nm?656 nm |
| Spectral Transmission | T?85% |
| Camera Mount | C – Mount |
| Filter Thread | M35.5xP0.5 |
| Focus Control | Manual |
| Iris Control | Manual |
| Product Dimensions | 47.5 mmx?39 mm |
| Net Weight | 124 g |
| Operating Temperature | -10°C ?+50°C |
Additional information
| Field of view | 38.8°x34.7°x23.5°(17.6 mmx14.08 mmx10.56 mm) |
|---|---|
| Focus control | Manual |
| Cra (chief ray angle) | 10.7° |
