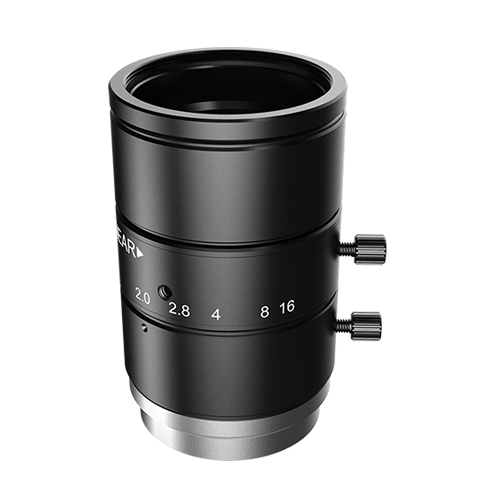

MHR3520M

MHR3520M

Series MH-M Series
Model MHR3520M
Focal Length 35 mm
Aperture F2.0 – 16
Image Sensor Size Ф11.4 mm(2/3″)
Focus Range 0.2 m to infinite
Optical Distortion -0.05%
TV Distortion -0.01%
Field of View 16.49°×12.8°×10.7°(11 mm×8.5 mm×7.12 mm)
Relative Illumination 94% (F2.0); 96% (F4.0)
CRA（Chief Ray Angle) 8.5°
Spectral Range 436 nm~656 nm
Spectral Transmission T＞85%
Camera Mount C – Mount
Filter Thread M25.5×P0.5
Focus Control Manual
Iris Control Manual
Product Dimensions 36.25 mm×Ф29 mm
Net Weight 62.23 g
Operating Temperature -20°C ~ +50°C
Add to Quote
Category: Tag: Brand:

Description

  • Support up to 2/3″ camera sensors
  • 6 models, focal length covering from 8mm to 50mm
  • High resolution for 8MP camera in full of view clear and uniform imaging?
  • Large aperture?mainly F2.0?
  • Low distorion?
  • Stable sharpness quality when temperature varies from -20?~50??

Dimensions

Downloads

Additional information

Field of view

16.49°x12.8°x10.7°(11 mmx8.5 mmx7.12 mm)
Focus control

Manual
Cra (chief ray angle)

8.5°
