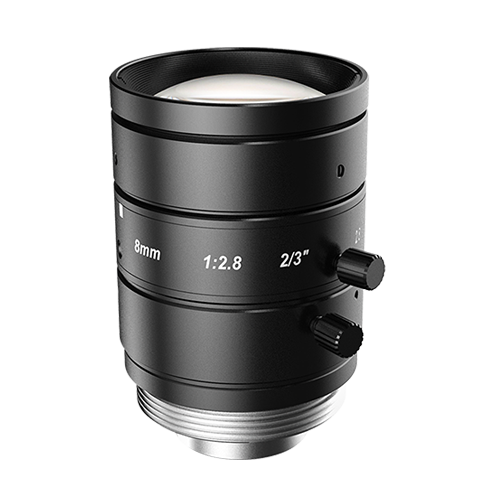

MHR0828M

MHR0828M

Series MH-M Series
Model MHR0828M
Focal Length 8mm
Aperture F2.8 – F16
Image Sensor Size ?11.4mm(2/3″)
Focus Range 0.1m to infinite
Optical Distortion -0.89%
TV Distortion -0.77%
Field of View 67.2°x53.5°x 46.0°(11mmx8.5mmx7.12mm)
Relative Illumination 60% (F2.8); 90% (F4.0)
CRA?Chief Ray Angle) 13.87°
Spectral Range 436nm~656nm
Spectral Transmission T>85%
Camera Mount C Mount
Filter Thread M27xP0.5
Focus Control Manual
Iris Control Manual
Product Dimensions 35.35mm x ?29mm
Net Weight 68.49 g
Operating Temperature -20°C to ~50°C
Add to Quote
Category: Tag: Brand:

Description

  • Support up to 2/3″ camera sensors
  • 6 models, focal length covering from 8mm to 50mm
  • High resolution for 8MP camera in full of view clear and uniform imaging?
  • Large aperture?mainly F2.0?
  • Low distorion?
  • Stable sharpness quality when temperature varies from -20?~50??

Dimensions

Downloads

Additional information

Field of view

67.2°x53.5°x 46.0°(11mmx8.5mmx7.12mm)
Focus control

Manual
Cra (chief ray angle)

13.87°
