Description
- Measured at maximum current and maximum working distance.
- At 25°C. At max pulse width (1 ms), max pulse frequency = 15 Hz.
- At 25°C.

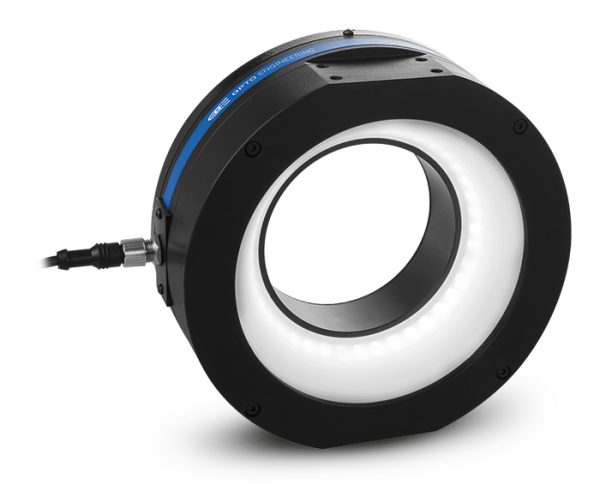

LTLAC1-W
| Specification | Value |
|---|---|
| Illumination area diameter | 100 (mm) |
| Optimal working distance | 5-50 (mm) |
| Number of LEDs | 40 |
| Light color, peak wavelength | white, > 6000 K |
| Spectral FWHM | – (nm) |
| Illuminance | 70 (klux) |
| Diffuser | yes |
| Power supply mode | Strobe only, constant current driving |
| Peak power consumption | n.a. (W) |
| Min pulse current | 3.5 (A) |
| Max pulse current | 7.5 (A) |
| Max pulse duration | 1 (ms) |
| Max duty-cycle | 1.5 (%) |
| Estimated MTBF | > 50000 (hours) |
| Connector | M12 |
| Cables | CBLT001 included |
| Aperture diameter | 102.0 (mm) |
| Length | 206.0 (mm) |
| Width | 206.0 (mm) |
| Height | 76.0 (mm) |
| Mass | 2500 (g) |
| Clamping system | 8x M6 threaded holes |
| Operating temperature | 0-40 (°C) |
| Storage temperature | 0-50 (°C) |
| Operating relative humidity | 20-85, non condensing (%) |
| Installation | Indoor use only |
| Risk group according to CEI EN 62471:2010 | Risk group 1 |
Additional information
| Mass | 2500 (g) |
|---|---|
| Risk group (cei 62471) | Risk group 1 |
| Max pulse current | 7.5 (A) |
| Accessory developer | Opto |
| Aperture diameter | 102.0 (mm) |
| Connector | M12 |
| Height | 76.0 (mm) |
| Width | 206.0 (mm) |
| Operating temperature | 0-40 (°C) |
| Storage temperature | 0-50 (°C) |
| Installation | Indoor use only |
| Color | white, > 6000 K |
| Operating relative humidity | 20-85, non condensing (%) |
| Length | 206.0 (mm) |
| Illuminance | 70 (klux) |
| Number of leds | 40 |
| Diffuser | yes |
| Peak power consumption | n.a. (W) |
| Max duty cycle | 1.5 (%) |
| Max pulse duration | 1 (ms) |
| Cables | CBLT001 included |
| Clamping system | 8x M6 threaded holes |
| Power supply mode | Strobe only, constant current driving |
| Estimated mtbf | > 50000 (hours) |
| Optimal working distance | 5-50 (mm) |
| Illumination area diameter | 100 (mm) |
| Min pulse current | 3.5 (A) |
| Light color, peak wavelength | white, > 6000 K |
