C01-IO-12PIN-FC-3M

C01-IO-12PIN-FC-3M

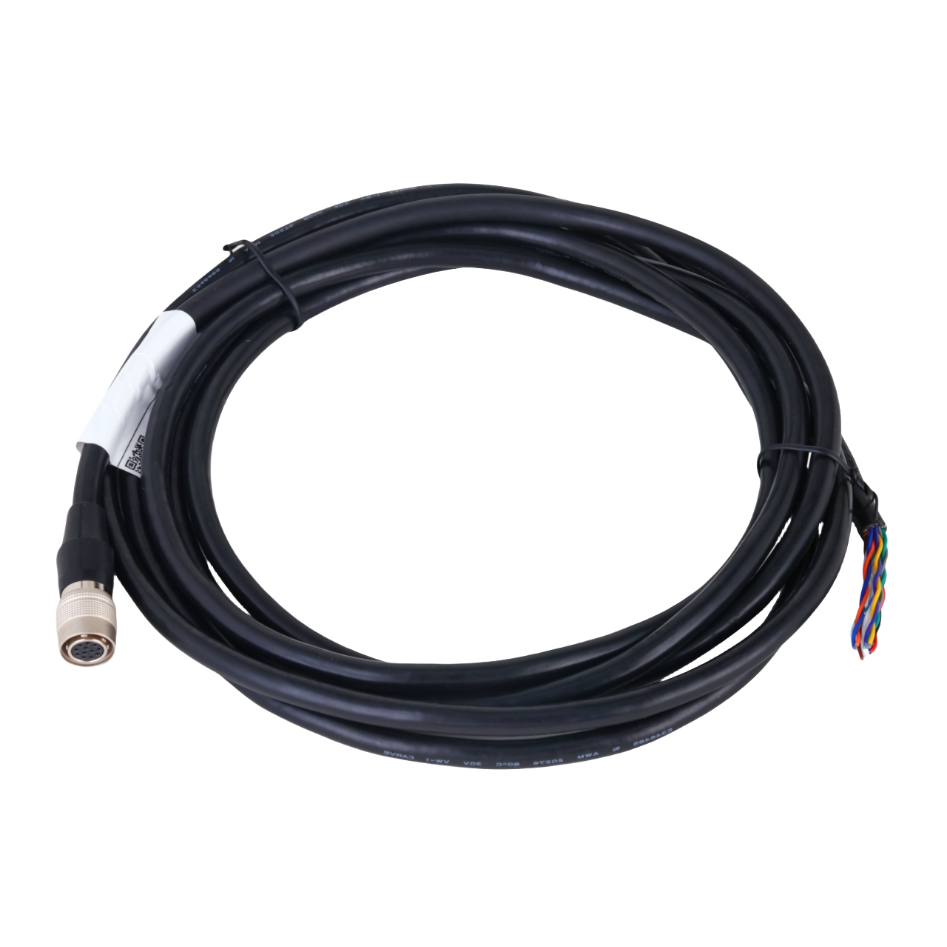

Model C01-IO-12PIN-FC-3M
Category 12Pin Power&I/O Dynamic Cable
Appearance Color Black
Length 3m
End A Connector 12-pin?Female
End B Connector Open
Cable Structure 26AWG*6P+P+B
Cable Diameter 7.0mm
Cable Sheath TPE
Connector Durability ?750 cycles
Min Bending Radius 75mm
Applicable Scenes Dynamic scenes
Number of Cycles Rubber Tracks Complete 10 million cycles
Packaging Method Individual package bag
Max Operating Voltage 30 VDC
Certifications RoHS2.0
Operating Temperature -20??80?
Add to Quote
Category: Tag: Brand:

Description

  • 1?The 12-pin Power&I/O Cable can be used to power the camera, I/O signal wiring
  • 2?Aviation head connector, reliable connection camera
  • 3?With shielding layer design, to ensure anti-external electromagnetic interference
  • 4?With excellent flexibility, to meet the tank chain mobile installation applications
  • 5?Specific good wear resistance, cold resistance, flame retardant
  • 6?Conform to RoHS 2.0

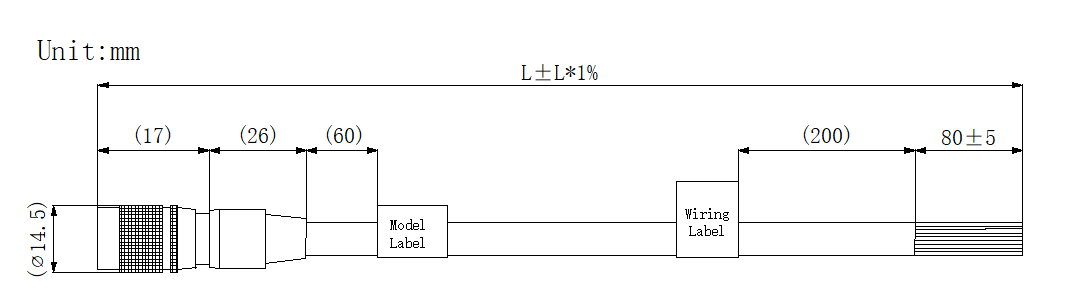

Dimensions

Downloads

Additional information

Appearance color

Black
Applicable scenes

Dynamic scenes
Cable diameter

7.0mm
Cable sheath

TPE
Cable structure

26AWG*6P+P+B
Certifications

RoHS2.0
Connector durability

≥750 cycles
End a connector

12-pin，Female
End b connector

Open
Length

3m
Max operating voltage

30 VDC
Min bending radius

75mm
Packaging method

Individual package bag
Product category

12Pin Power&I/O Dynamic Cable
