Machine vision in focus
| Sensor | IMX411 |
| Image Sensor | 53.4 mm x 40.0 mm CMOS |
| Shutter | Rolling |
| Resolution | 14192 x 10640 |
| Frame Rate | 6.2 fps |
| Bit Depth | 12 bit |
| Mono/Color | Mono |
| Pixel Size | 3.76 ?m x 3.76 ?m |
| Pixel | 151 MP |
| S/N Ratio | 45 dB |
| Dynamic Range | 78 dB |
| Image Format | Mono8/10/12 |
| ROI | Support |
| X Flip | Support |
| Y Flip | Support |
| Gain | Analog gain: 1x ~ 63x, Digital gain: 1x ~ 100x |
| Exposure Time | 30 ?s ~ 5 s |
| Trigger Mode | Software Trigger/Hardware Trigger/Free Run Mode |
| SPC | Support |
| user Setting | Support two sets of user-defined configurations |
| Port | CXP-6 |
| GPIO Interface | 3x Opto-isolated input, 3x Opto-isolated output;1x RS232 |
| Lens Mount | M72 x 0.75 |
| Power Supply | DC 24V power supply via 12 Hirose interface?support PoCXP |
| Power Consumption | 24 V ? 51.6 W |

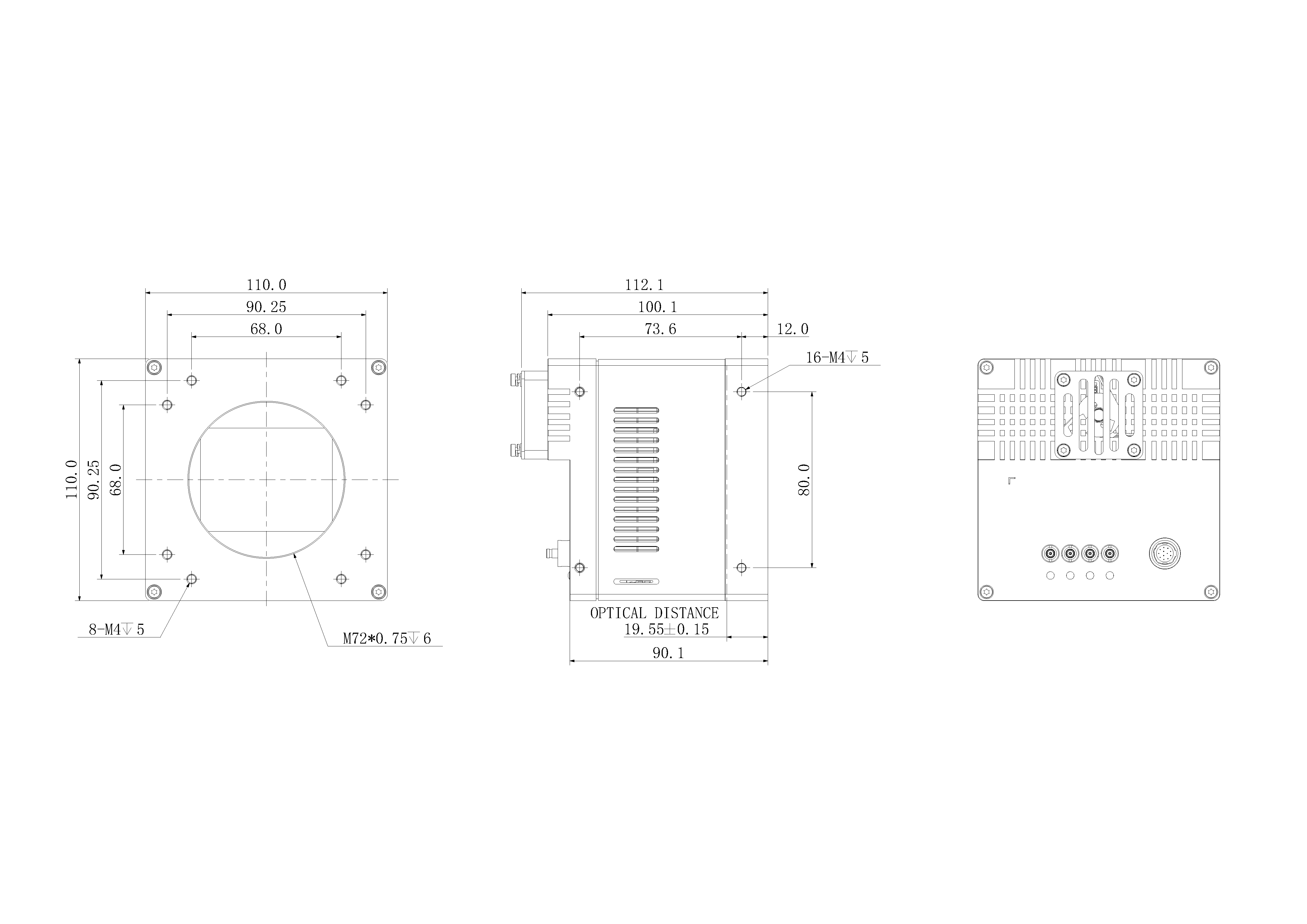

| Product Dimensions | 110 mm x 110 mm x 90.1 mm (Non including rear case connector) |
| Net Weight | 1k g |
| Storage Temperature | -30?~+80? |
| Operating Temperature | -10?~+50? |
| Bit depth | 12 bit |
|---|---|
| Dynamic range | 78 dB |
| Exposure time | 30 us ~ 5 s |
| Frame rate | 6.2 fps |
| Gain | Analog gain: 1x ~ 63x, Digital gain: 1x ~ 100x |
| Gpio interface | 3x Opto-isolated input, 3x Opto-isolated output；1x RS232 |
| Image format | Mono8/10/12 |
| Image sensor | 53.4 mm x 40.0 mm CMOS |
| Lens mount | M72 x 0.75 |
| Pixel | 151 MP |
| Pixel size | 3.76 um x 3.76 um |
| Port | CXP-6 |
| Power consumption | 24 V ≈ 51.6 W |
| Power supply | DC 24V power supply via 12 Hirose interface，support PoCXP |
| Resolution | 14192 x 10640 |
| Roi | Support |
| Sensor | IMX411 |
| Shutter | Rolling |
| Spc | Support |
| Storage temperature | -30℃~+80℃ |
| Trigger mode | Software Trigger/Hardware Trigger/Free Run Mode |
| User setting | Support two sets of user-defined configurations |
| X flip | Support |
| Y flip | Support |
| Mono-color | Mono |
| S/n ratio | 45 dB |
